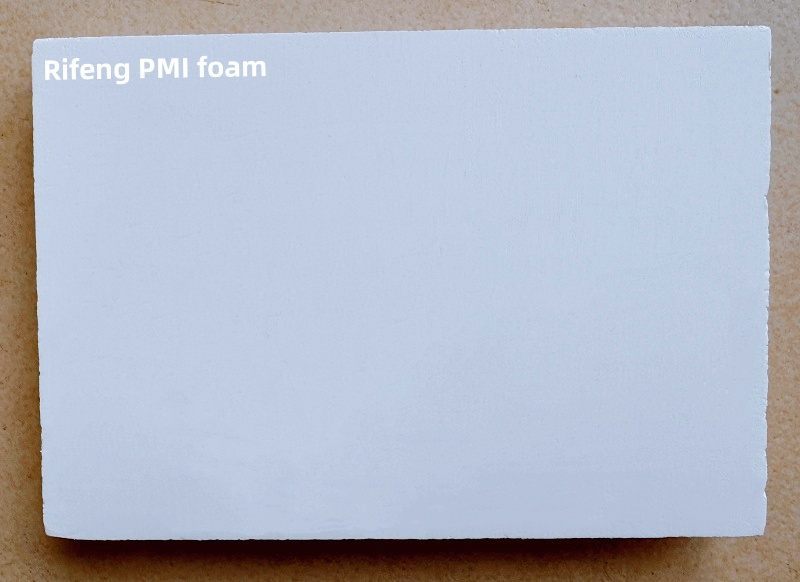

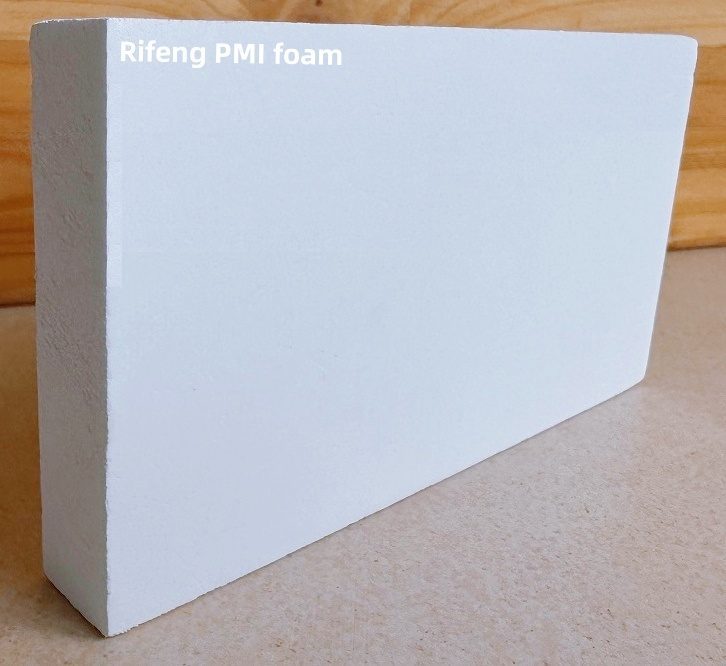

PMI Structural Foam
Rifeng F is a closed-cell rigid foam base on Polymethacrylimide (PMI) polymer, that is completely free of CFC's. It's with Fine Cell Size.
Rifeng F with extremely low dielectric constants and particularly favorable transmission properties in the high frequency region, Rifeng F has been specially designed for antenna applications. Moreover, it is also used in radomes and mammography plates.
For antennas, the applications range from miniature antennas in cell phones to large fixed ship-based and stationary antenna structures. Other advantages of Rifeng F in such applications are its extremely fine cell structure that ensures minimal resin uptake, and problem-free compatibility with metallic facing materials due to the absence of corrosive effects.
Processing and Production
Rifeng F core materials can be processed by hand lay-up, prepreg, or vacuum infusion techniques at pressures up to 0.35 MPa and temperatures up to 130°C~150°C.
Weight Saving
When building composite sandwich components, lightweight Rifeng F has a closed cell structure that ensures the resin stays exactly where you want it – in the interface. This eliminates excess and unnecessary resin that adds undesirable weight to the finished part.
Thermoforming and Shaping
Rifeng F can be easily thermoformed or CNC machined to meet customer requirements. High precision, pre-shaped and ready-to-use foam cores in simple or complex geometries can also be supplied by us.
Mechanical Properties
|
Property
|
Test Method
|
Unit
|
Rifeng 32F
|
Rifeng 52F
|
Rifeng 75F
|
Rifeng 110F
|
|
Density
|
ISO 845
|
Kg/m3
|
32±7
|
52±12
|
75±15
|
110±20
|
|
Compressive Strength
|
ISO 844
|
MPa
|
0.40
|
0.90
|
1.60
|
2.25
|
|
Tensile Strength
|
ASTM D638
|
MPa
|
0.95
|
1.90
|
2.50
|
3.30
|
|
Elastic Modulus
|
ASTM D638
|
MPa
|
35
|
75
|
95
|
185
|
|
Elongation at Break
|
ASTM D638
|
%
|
2.6
|
2.8
|
3.0
|
3.6
|
|
Flexural Strength
|
ASTM D790
|
MPa
|
0.60
|
1.60
|
2.85
|
4.50
|
|
Shear Strength
|
ASTM C273
|
MPa
|
0.40
|
0.90
|
1.30
|
2.25
|
|
Shear Modulus
|
ASTM C273
|
MPa
|
12
|
25
|
40
|
60
|
|
Heat distortion resistance
|
DIN 53424
|
℃
|
≧200
|
≧200
|
≧200
|
≧200
|
- Technical data values presented are typical for nominal density, subject to normal manufacturing variations, not applicable for designing and acceptance. Please contact our QA team for material criterion and standard.
- Density values are valid for full-size sheets with a minimum thickness of 10 mm(0.39 inch) only. Other density ranges are available upon request.
Sales range for Rifeng F
|
Rifeng F
|
Size (mm)
|
Thickness (mm)
|
|
32 F
|
2500 x 1250
|
1~80
|
|
52 F
|
2500 x 1250
|
1~110
|
|
75 F
|
2500 x 1250
|
1~90
|
|
110 F
|
2160 x 1100
|
1~65
|
- All dimension ranges presented in these tables are standard. To discuss any size or thickness not listed, please contact a Rifeng representative.
- 1-4 mm thick sheets supplied in 1/4 or 1/2sheet size.
- Thickness tolerance ± 0.2 mm, length/ width tolerance ± 2 mm, other tolerances available on request.
High-Strength Core Material for AerospaceRifeng F-1 PMI Foam is widely used in aerospace applications, including helicopter blades and radome aircraft components, providing exceptional structural support without the added weight.Custom Density and Shape OptionsWe offer custom production of PMI foam to meet your specific project needs. You can request tailored density, thickness, and shapes for a perfect fit with your engineering requirements.Lightweight and Durable PerformanceThis foam combines low density with exceptional strength, making it perfect for applications where weight reduction is critical. It performs under demanding conditions and ensures high impact resistance.Versatile for Multiple IndustriesNot only ideal for aerospace, Rifeng F-1 PMI Foam is also suitable for marine, automotive, and industrial applications, providing flexible solutions across different sectors.
Product Advantages
- Customizable Solutions: Tailor the foam to specific density and shape requirements.
- Lightweight and Durable: Offers excellent strength-to-weight ratio, crucial for aerospace and structural applications.
- Consistent Quality: Manufactured using advanced technology for reliable performance.
- Versatile Applications: Suited for a wide range of industries including aerospace, marine, and automotive.
- Environmental Resistance: Excellent resistance to moisture and heat, ensuring longevity in demanding environments.
